PANNOY Public Address System-PA-T13A 16 Zone Speaker Selector

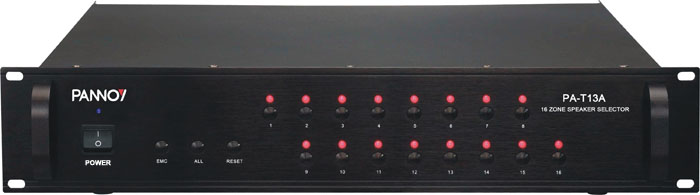

PA-T13A 16 Zone Speaker Selector

Descriptions

This equipment is used to distribute/divide the public address system into several speaker zones, it can distribute up to 16 speaker zones, then each speaker zone can be controlled and managed respectively.

Features

●With 16 zone selectors

●1~4 pcs amplifier can be output to A,B,C,D four group optionally

●Working status is clear for distribution zone

●Total distribution capacity up to 6kW, max.2kW per zone

●Alarm section has priority

●Switching to emergency signal automatically for corresponding zone

Specifications

Model	PA-T13A
Distribution Zone	16 Zones divided into 4 groups
A,B,C,D Section Input	70-100V,BGM signal
Alarm Section Input	70-100V,Paging & EMC alarm signal
Output	70-100V
Controls	Power switch,16 zones selectors,"ALL","EMC"&"RESET" buttons
Indicators	Power LED, 16 Zone LEDs
Protection	AC fuse 1A
Power Requirements	110/220V±10%,50/60Hz
Power Consumption	35W
Dimensions (W×D×H)	483×320×88mm
Weight	7Kg

Specifications and design are subject to change without notice

Rear Panel
