PANNOY Public Address System
PA-T20S  12 Channel 24VDC Power Supply

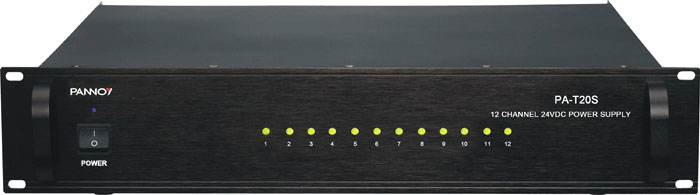

PA-T20S 12 Channel 24VDC Power Supply
Descriptions

This equipment is used to automatically provide DC24V power supply for volume controller after being activated when an emergency occurs.

Features

●12 channels power supply

●12 LEDs show the corresponding channel

●Providing DC24V to the corresponding volume controller automatically after being activated

Specifications

 Model

 PA-T20S

 Activating Input

 EMC Alarm signal

 Output Channel

 12 Channels, DC24V×1A /Channel

 Controls

 Power switch

 LED Indicators

 Power LED,CH1~CH12

 Protection

 AC fuse 1A

 Power Requirements

 110/220V±10%,50/60Hz

 Power Consumption

 30W

 Dimensions (W×D×H)

 483×320×88mm

 Weight

 11Kg

 Specifications and design are subject to change without notice

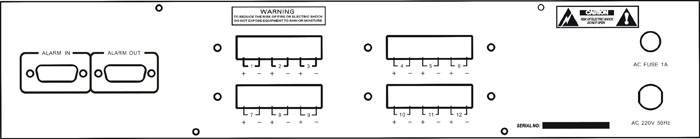

Rear Panel
back
