PANNOY Public Address System-PA-6260MA 6 Zone Mixer Amplifier 260W

PA-6260MA 6 Zone Mixer Amplifier 260W

Descriptions

●2 MIC inputs, 3 AUX inputs, 1 AUX output

●Individual volume controller for MIC & AUX inputs.

●MASTER volume controller ,BASS and TREBLE tone controller.

●MIC1 has priority over other inputs

●With chime function

●With 6 zone speaker slector

●70V, 100V and 4~16Ω outputs

●Output short circuit,overload,high temperature protection and alarm

Specifications

Model	PA-6260MA
Rated Power	260W
Output Mode	4~16Ω, 70V, 100V
MIC Input	MIC 1,2: 5mV/600 ohms, Unbalanced
AUX Input	AUX 1,2,3: 250mV/10k ohms, Unbalanced
Tone	BASS:±10dB at 100Hz,TREBLE:±10dB at 10KHz
Frequency Response	50Hz - 20KHz(±3dB)
S/N Ratio	MIC 1,2: 70dB; AUX 1,2,3: 80dB
THD	Less than 0.5% at 1kHz, 1/3 rated power
Muting Function	MIC 1 overrides other input signals
LED Indicators	POWER, SIGNAL,CLIP, PROTECT
Protection	AC fuse, short circuit,overload,high temperature
Power Requirements	110/220V±10%,50/60Hz
Power Consumption	400W
Dimensions (W×D×H)	483×320×88mm
Weight	14.5Kg

Specifications and design are subject to change without notice

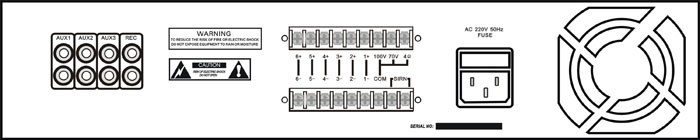

Rear Panel
