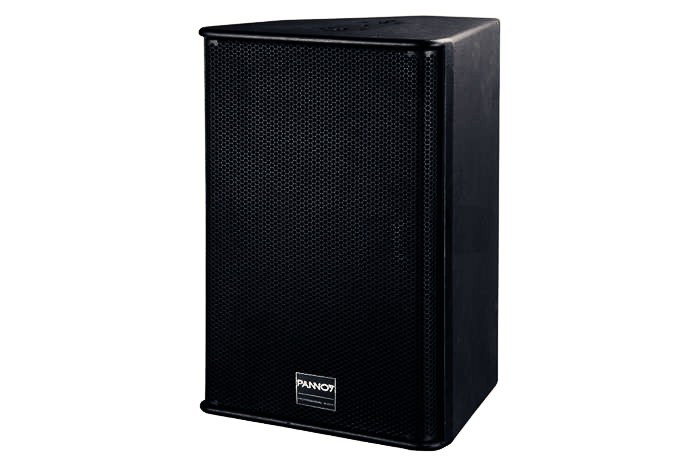

PA08 8 inch Two Way Full Range Loudspeaker

Descriptions

PA series loudspeaker system is specially designed to medium and small scale sound reinforcement and flow performance. They are dynamic and powerful with delicate and fashionable appearance. PA08 is a two-way, full range loudspeaker system. It features one high efficient 8”woofer and one 1.4＂compression driver housed in a compact plywood enclosure, combining smooth dynamic full frequency performance with high power driver units. It is particularly suitable for clubs, theaters, halls, discos, conferences, etc.

Specifications

Model: PA08

Type: 8 inch Two Way Full Range Loudspeaker

Power Handling(RMS/PEAK): 200W/400W

Nominal Impedance: 8Ω

Frequency Response: 65Hz-20kHz(±3dB)

Sensitivity (1W/1M): 95dB

Maximum SPL(1M): 120dB

Coverage Patterns(H×V): 90°x50°

LF Section: 8" (204mm) woofer, 2" (50mm) voice coil

HF Section: 1.4"compression driver

Input Connectors: 2xNL4MP Speakon
